Text and images by Lightning Cycle Dynamics
But How Does it Comes Apart?

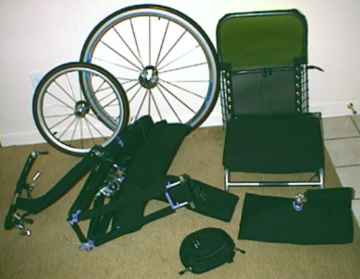

Disassembling the P-38 Voyager is simple and requires almost no tools at all:
Remove seat and separate into two halves
Separate chain using no-tool quick link and wind chain up on crankset
Flip boom quick-release levers, undo front derailleur cable and remove boom
Separate frame couplings using special wrench (included)
Flip quick release to free steering stem
Unbolt rear derailleur from frame using allen key (no need to undo cable)
Wrap frame padding material on each part.

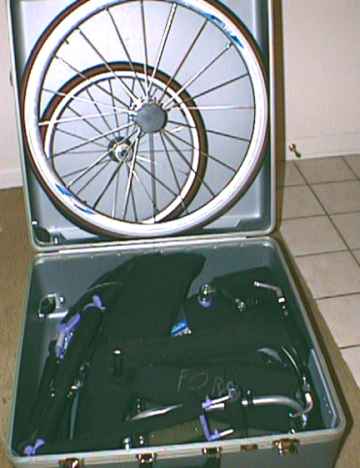

Wheels go in the lid.

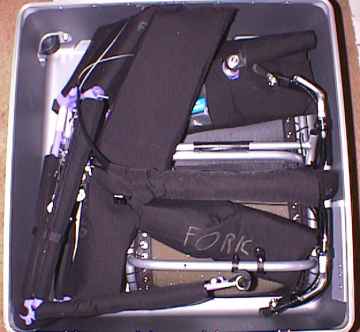

Nest two halves of frame into each other, and place in case.
Click here for more information regarding the P-38 Voyager
