Co-Motion Co-Pilot Tandem

Model description (provided by Co-Motion)

If you're looking for a travel tandem, but don't like the idea of sacrificing performance, rejoice. The Co-Pilot performs so well, you won't even think of it as your "travel" tandem. This is the only tandem you need to own!

First introduced in 1993, the S&S Machine Bicycle Torque Coupling (BTC) has revolutionized the bicycle industry and forever changed the image of travel bikes. Folding tandems with non-standard parts have become obsolete.

Co-Motion blazed a new trail for travel tandems with a brilliant 6-BTC system. Since the Co-Pilot tandem frame separates into three equally sized sections, the ultimate in packability is maintained while tandem assembly and disassembly is intelligently simplified. One significant advantage is that there is no need to remove the fork. Plus, the Co-Pilot's BTCs are strategically located for unimpeded wrench access without time-consuming crankset removal. These details are critical time savers that our competitors simply overlook.

No tandem maker is more thorough than Co-Motion when it comes to engineering the location of the couplings for optimum frame strength. Each coupling is fully supported where it is integrated into the butted section of our exclusive Reynolds 525/725 triple-butted tandem tubing. Our large diameter bottom tube is oval at both ends and round where it joins just one large BTC. This design provides the best known structural benefit of a single oversized tube as well as lighter weight and the logical simplicity and ease of handling fewer parts.

Because we know you expect the best, Co-Motion Cycles uses only the original stainless steel S&S Machine Bicycle Torque Couplings. Many other builders are now using plated or non-plated couplings made from non-stainless material, which are designed to reduce cost and speed up bicycle production. Stainless couplings assure a lifetime of flawless and corrosion-free operation.

We know that once you own a Co-Pilot, you'll want to keep it forever.

Frame Specifications
Frame Size 21/18 22/19 23/20
Head Angle 73 73 73
Seat Angle, Captain 73 73 73
Seat Angle, Stoker 73 73 73
Top Tube, Front 21.75" 22.5" 23.25"
Top Tube, Rear 27.55" 27.55" 27.55"
Bottom Bracket Height 10.75" 10.75" 10.75"
Rear Axle Spacing 145mm 145mm 145mm
Seat Post Diameter 29.8mm 29.8mm 29.8mm
Standover, Front 30.5" 31.1" 32"
Standover, Rear 27.6" 28.6" 29.5"


Frame sizes are measured from center of bottom bracket to top of seat tube collar.
Standover heights are measured at mid top tube.
Top tube lengths are measured on effective horizontal.

Tandem Componenet Package
Frame Co-Motion designed Reynolds 525/725 triple butted tandem tubing Fork Co-Motion taper-gauge Cro-Moly, with Co-Motion CNC tandem steerer
Headset RaceFace Thermo T-Less Bottom Brackets Shimano UN-52
Crankset RaceFace Tandem Chainrings 54-44-32
Brakes Avid Single Digit 25 Brake Levers Dia Comp 287 V (see options)
Front Derailleur Ultegra 6500 Triple Rear Derailleur Shimano XT 9sp
Cassette LX 11-32 9sp Shifters Shimano DuraAce 9sp bar end (see options)
Seat Posts Zoom 29.8 mm Saddles Co-Motion D2 Men's & Women's
Captain Stem Salsa Moto-Ace 8-13cm Stoker Stem Co-Motion 11cm or 13cm
Chain Shimano CN-HG92 Pedals None
Hubs Phil Wood 36h, 40h or 48h Spokes DT 14 gauge
Rims Velocity Dyad Silver Tires Avocet Fasgrip20 700x28
QR skewers Salsa Handlebars Profile 40,42,44, or Stoker
Tandem Optional Equipment
Co-Motion adjustable stoker stem Disk brake options
Chris King headset Rockshox suspension seat post
Arai drum brake with QR kit STI package
Shimano Ultegra Tandem Crankset package

Paint Options:

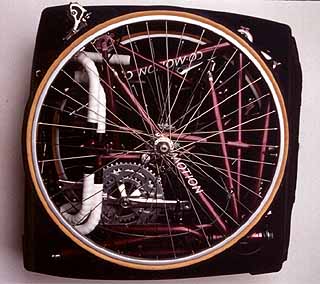

This complete Co-Pilot tandem fits into the case shown below.

The complete tandem in one S and S backpack case.

Shown with protective tube covers removed for clarity

Show me how easy it packs
